View interactive taxonomy charts for metagenomics analyses

You can use interactive taxonomy views to browse through metagenomics data.

Note: The Snapshot button does not operate on the visualization screen for the Metagenomics 16S analysis results in some browsers. You need to instead create a PDF of the visualization.

In the Analyses tab, click Overview.
In the Analyses screen, click the name of your metagenomics analysis. You can filter the list to display only metagenomics analyses.
In the results screen for the selected analysis, in the Visualization/Downloads section, click Visualize results by primer or Visualize consensus results to open an interactive taxonomy view.
Click Download results files for all samples to download all results files.

This table describes ways to use the interactive taxonomy views. For more information, see the documentation at this github site.


Task	Your action
Open the analysis data in an interactive taxonomy view	Click the Visualize results by primer link.
Open interactive taxonomy views on the consensus data	Click the Visualize consensus results link.
Download results files for all samples	Click the Download results files for all samples link to download all results files for the metagenomics analysis.
Display percentages for one section of the chart	Click that section of the chart. The percentages for that section are displayed in the top right of the page.
Make that section the new focus of the chart	Click the expand box in the top right of the screen.
Return to the previous chart focus	Click the back arrow at the top left of the screen. You can complete only one go-back action at a time.
Change the number of circles shown in the chart	Click the minus or plus icons near the Max depth label.
Change the font size	Click the minus or plus icons near the Font size label.
Change the size of the chart	Click the minus or plus icons near the Chart size label.
Show read depth by color	Select the Color by Reads checkbox. A color legend appears in the bottom left. (This example shows a consensus chart.)

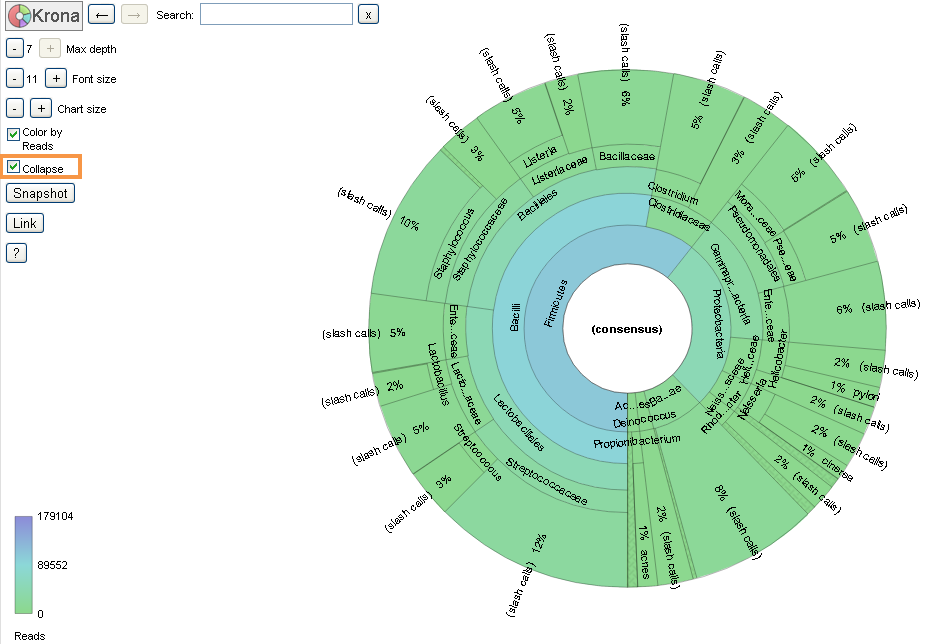

Simplify wedges	Select the Collapse checkbox. This selection combines redundant wedges (that include only another wedge).
Create an image of the pie chart	Click Snapshot. Clicking this button creates a SVG (Scalable Vector Graphics) format image file. See the documentation at this github site for more information about browser support. (For example, in Chrome™ browser, an SVG file is not created directly. You need to save the screen as a PDF file.)
Create a sharable link to the chart	Click Link.
Open Krona™ documentation	Click the question mark to open the documentation in a new tab.
